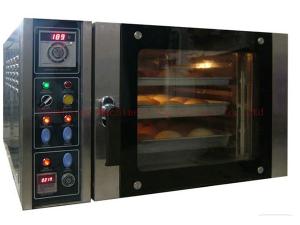

NFC Series Convection Oven

  • Mini convection oven

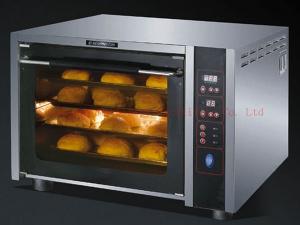

    NFC-4WDI
  • Convection Oven

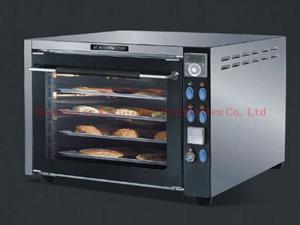

    NFC-3D
  • Convection Oven
    NFC-4WD
inquiry form
I. Product Parameters
Model Name Voltage Power Overall Dimension Size of
the Tray
NFC-3D 3-tray electric convection oven 380/50Hz 6Kw 865×1250×545mm 400×600mm
NFC-5D 5-tray electric convection oven 380/50Hz 9Kw 900×1250×770mm 400×600mm
NFC-8D 8-tray electric convection oven 380/50Hz 16Kw 900×1250×1120mm 400×600mm
NFC-10D 10-tray electric convection oven 380/50Hz 16Kw 900×1250×1120mm 400×600mm
NFC-12D 12-tray electric convection oven 380/50Hz 23.5Kw 1500×1000×1830mm 400×600mm
NFC-5Q 5-tray gas convection oven 380/50Hz 0.55Kw 900×1250×945mm 400×600mm
NFC-8Q 8-tray gas convection oven 380/50Hz 0.8Kw 900×1250×1305mm 400×600mm
NFC-10Q 10-tray gas convection oven 380/50Hz 0.8Kw 900×1250×1305mm 400×600mm
NFC-12Q 12-tray gas convection oven 380/50Hz 1.3Kw 1530×1000×1845mm 400×600mm
NFC-4WD 4trays electric convection oven 220/50Hz 2.5 kw 700x730x510mm 450x350mm
NFC-4WDI 4trays electric convection oven(computer panel controller) 220/50Hz 2.5 kw 700x730x510mm 450x350mm
WPO-4AC 4trays electric convection oven 220/50Hz 2.5 kw 600x530x570mm 450x350mm
NFC-4WD 4 trays electric convection oven 220/50Hz 2.5 kw 700x730x510mm 450x350mm
NFC-4WDI 4 trays electric convection oven (computer panel controller) 220/50Hz 2.5 kw 700x730x510mm 450x350mm
WPO-4AC 4 trays electric convection oven 220/50Hz 2.5 kw 600x530x570mm 450x350mm

II. Product Details

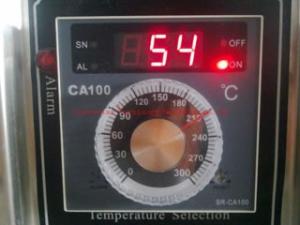

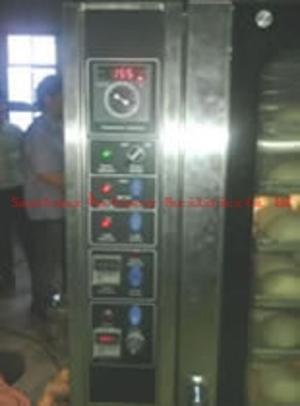

A. The operating system of the NFC series convection oven is designed with microcomputer processor that has good anti-interference performance. Therefore, the product has good reliability. The temperature can be accurately controlled through the self-correcting device and PID controller. Additionally, it is very convenient to store the data and set up the operation of the machine. The controlling range of the temperature is selectable, including 0℃ to 300℃ and 0℃ to400℃.

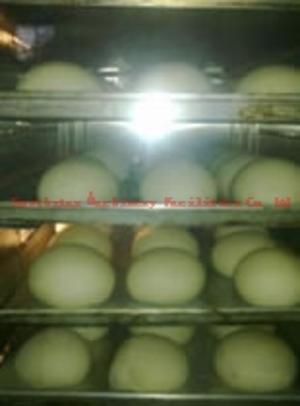

B. The intelligent and accurate monitoring will help you to control the baking condition of the food easily.
1. From the failure warning device for power supply, air blower and the lighting, you can get information about the operating conditions of the convection oven clearly.
2. The product is designed with steam timer and baking timer. Therefore, it is very easy for you to set up the baking conditions.
3. The steam can be sprayed flexibly. Additionally, the frequency of steam spraying is adjustable.

C. The product is designed to operate with constant pressure. If the induction system detects excessive pressure, the machine will automatically decompress.

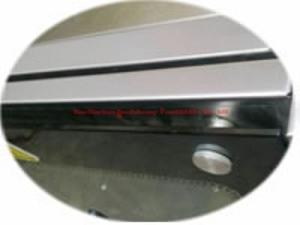

1. The excellent design of the product will effectively prevent the machine from air leakage.

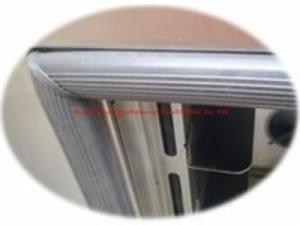

2. The double glass we use is tempered glass. Besides the safety and the nice appearance, it is very easy for you to disassemble the glass for cleaning.

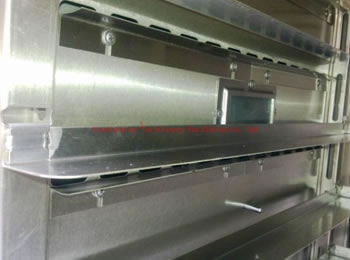

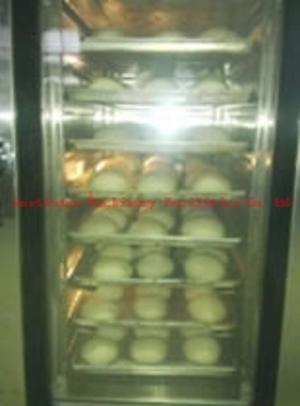

D. Inner chamber of the product
The NFC series convection oven is delicately designed with beautiful appearance and reasonable interior and exterior structures. With the good practicability, it is very convenient for you to operate the machine.

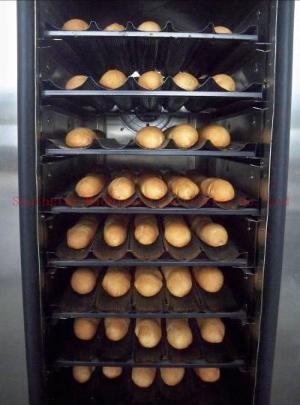

The space between the tray racks is 100mm. The tray racks can be easily disassembled and assembled. Both the inside and outside of the oven chamber are produced with #201 stainless steel, which is better than the material specified in the International Food Safety Standard.

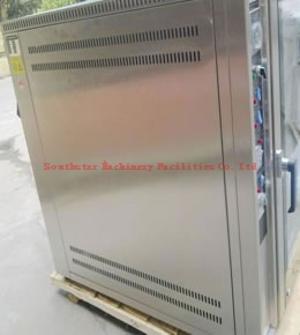

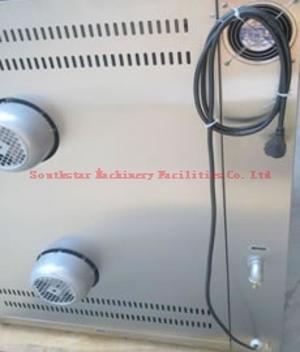

There are several heat dissipation systems at the sides and back of the convection oven. So the heat dissipation is faster and more sufficient. Accordingly, the service life of the product is extended.

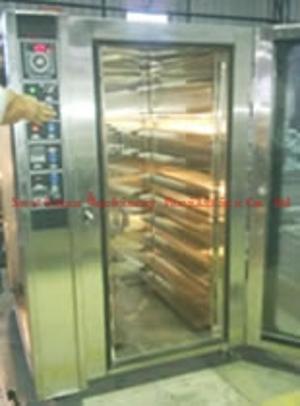

IV. Operation Display

V. Package

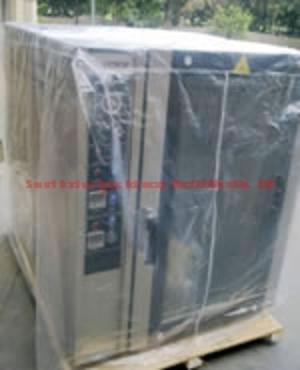

1. Slightly put the product on a piece of board and fix it.

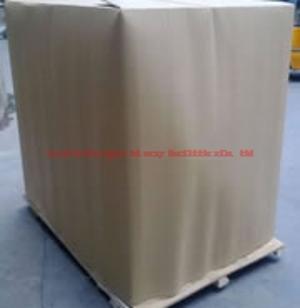

2. The cardboard shall be used to package the product for moisture proof.

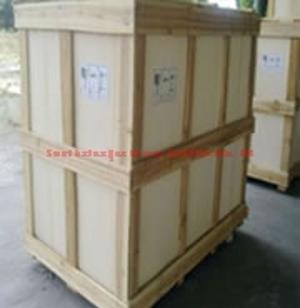

3. Finally, the product shall be packed with plywood and batten. Markings shall be affixed on four sides of the package.
