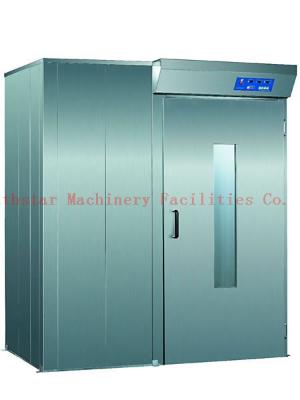

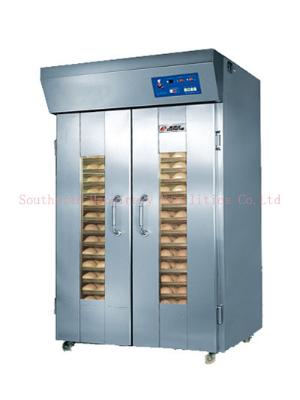

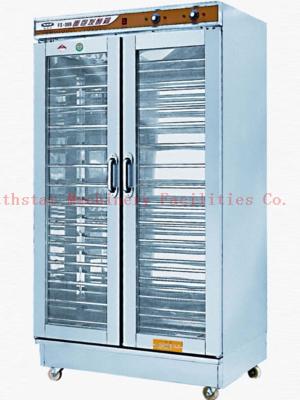

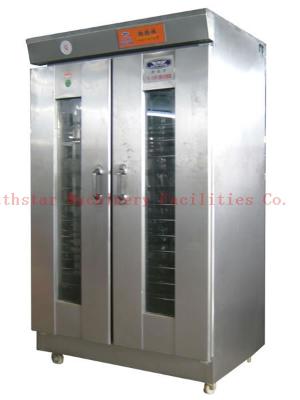

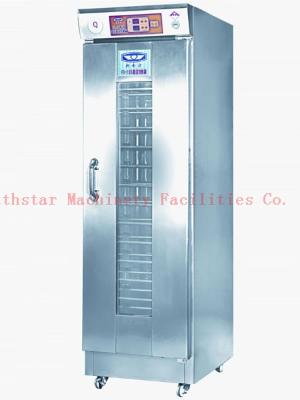

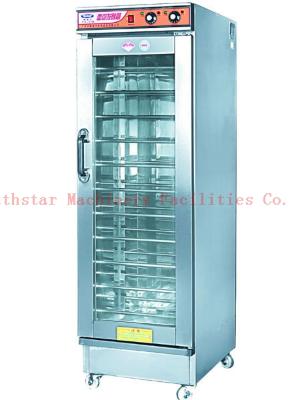

    1. Standard Proofer FX-432SThe Southstar fermenting room introduces international advanced technology, used by customers both in China and abroad. It features a low failure rate, a high processing capacity, quick manipulation and a long service life.

Standard Proofer

  • FX-15S
  • FX-28B
  • FX-32PS
  • FX-14B
  • FX-32BS

Performance
1. The standard proofer is made of stainless steel with beautiful appearance. Since the product is designed with the PU thermal insulation material between the stainless steel plates, the product has good heat insulation performance.
2. It is very easy for you to control the machine through the operation panel. On the panel, the temperature and the humidity inside the machine are displayed. The steam generator of this machine is quite reliable. It can generate stream 5 minutes after the machine is started up. The particle of the steam is extremely small. The dough fermented with this standard proofer has higher expansion rate for baking.

3. The continuous and convective circulation of the temperature and the humidity makes for the uniform conditions for fermentation. So the fermenting speed of the dough at any location of the machine is of the same.

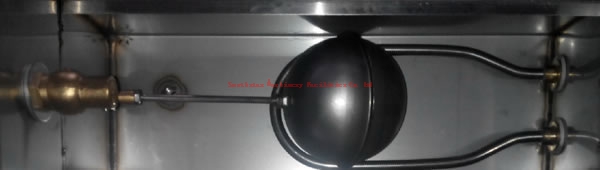

4. The machine is designed with a heating bar for temperature and the heating bar for the generation of moisture. The water spray for humidification is controlled by the solenoid valve. Additionally, the air is forced to circulate in the form of convection.

  • Heating bar for generating moisture
  • Heating bar for warming

5. Traditionally, the electricity will be turned off automatically when the temperature reaches the setting value. However, due to the slow response of the temperature, the electricity is turned off when the temperature has actually exceeded the setting value. According to the statistical analysis, 35% of the electricity is consumed in the needless heating. Based on the curve of the temperature, our company adopts PID regulating system for the standard prover, which utilizes the thermal inertia to achieve the ideal temperature so as to avoid overheating. Additionally, the value of the temperature difference can be set up to reduce the number of times that the heating unit is started to extend the service life of the product.

Parameters
Model Capacity Tray Size(mm) Voltage/Power N.W. (kg) Machine Size (cm)
FX-10B 10 trays 400×600 220V/3.5Kw 75 92×120×70
FX-10S 10 trays 400×600 220V/3.5Kw 75 92×120×70
Model Temperature
/Humidity
Capacity Tray Size(mm) Machine Size (cm) N.W. (kg) Voltage /Power
NFF-16PS 36℃~38℃/60% ~ 80% 16 trays
(Tray-in)
460×720 70×100×197 153 220V/2.8Kw
NFF-32PS 32 trays
(Tray-in)
460×720 115×100×197 270 220V/3.5Kw
NFF-232S 36℃~38℃/ 60% ~ 80% 2 trolleys with 32 trays each 460×720 191×138×205 340 380V/2.0Kw
NFF-416S 36℃~38℃/ 60% ~ 80% 4 trolleys with 16 trays each 460×720 124×152x×205 480 380V/2.0Kw
NFF-432S 36℃~38/
60% ~ 80%
4 trolleys with 32 trays each 460×720 197×166×205 680 380V/4.0Kw
NFF-632S 36℃~38/
60% ~ 80%
6 trolleys with 32 trays each 460×720 274×216×205 800 380V/6.0Kw
NFF-832S 36℃~38/
60% ~ 80%
8 trolleys with 32 trays each 460×720 308×192×205 1000 380V/8.0Kw
Model Capacity ( Trays) Tray Size
(mm)
Product Dimension
(mm)
N.W.
(kg)
Voltage
(V)
Power
(Kw)
FX-15S 15 400×600 610×860×1990 68 220 2.9
FX-24S 24 400×600 1200×860×1710 95 220 3.2
FX-30S 30 400×600 1200×860×2010 108 220 3.2
FX-11B 11 400×600 500×770×1600 45 220 2.5
FX-14B 14 400×600 500×770×1900 51 220 2.5
FX-22B 22 400×600 1020×770×1600 71 220 3.2
FX-28B 28 400×600 1020×770×1900 82 220 3.2
